product description
Appication Highlights:
Suitable for High Production at Lowest Operating Costs for:
Crepe Yarns for use in Warp for large-scale weaving.
Twisting + Heat-Setting + Crepe Texturising in Single Process for high production efficiency.
Suitable for 50-300 denier Polyester FDY
Extremely low power cost.
Single-Deck structure is user-friendly & allows higher yarn speeds.
Special Option :
Anti-Static Oil Continuous Pickup System
Inverter Drive or Soft-Starter for Main Motor
Electronic Drive System (EDS) with HMI for setting TPM, Main Spindle RPM & False-Twist Spindle RPM
Appication Highlights:
Suitable for High Production at Lowest Operating Costs for:
Crepe Yarns for use in Warp for large-scale weaving.
Twisting + Heat-Setting + Crepe Texturising in Single Process for high production efficiency.
Suitable for 50-300 denier Polyester FDY
Extremely low power cost.
Single-Deck structure is user-friendly & allows higher yarn speeds.
Special Option :
Anti-Static Oil Continuous Pickup System
Inverter Drive or Soft-Starter for Main Motor
Electronic Drive System (EDS) with HMI for setting TPM, Main Spindle RPM & False-Twist Spindle RPM
Silent Features :
* Lowest Production Cost for Crepe Yarn
* With 16000 rpm High-Precision Spindles
* With 1700000 rpm De-Twist Magnetic Spindles
* Anti-Patterning & Edge Breaking Gearbox
* Electric Heater allows excellent Power Saving & Quick Startups
- Sturdy Single-Deck Frame Structure for High Yarn speeds.
- Single-Deck Structure allows higher operator convenience
- Optimised Spindle Design for Energy Saving
- Sturdy Gearbox, fully Oil Bath Lubricated
- Anti-Static Oil Continuous Pickup System

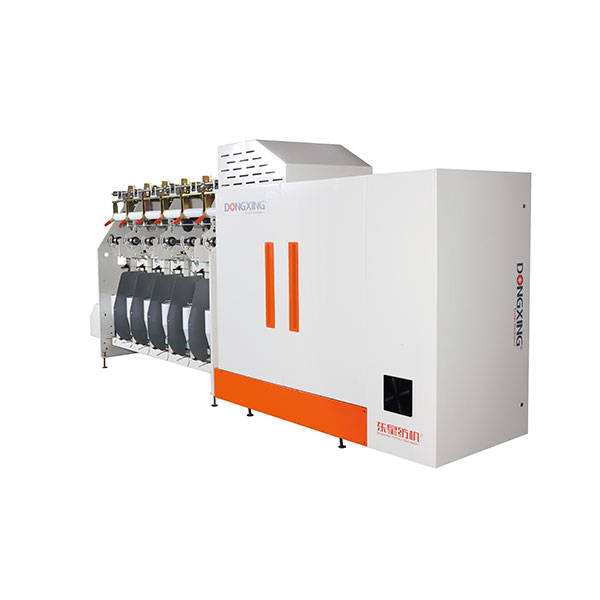

| TFO and heat-setting machine main specifications | ||
| Spindle gauge | 290mm | 360mm |
| Spindles per section | 14 | 12 |
| Standard sections per set | 10 | 10 |
| Standard spindles per set | 140 | 120 |
| Spindle type | 166/196/230/250 | |
| Yarn pot type | 166/196/230/250/300 | |
| Operation method | manual / pneumatic | |
| Processing material | 150D-2500D filament | 150D-4500D filament |
| Spindle running speed | 2000-8000rpm | 1500-6000rpm |
| Twists per meter range | 50-1500TPM | 50-1200TPM |
| Feed-in yarn bobbin | H type bobbin | |
| Feed-in yarn package weight | ≤5kg | ≤5kg |
| Finished bobbin | 230mm/straight bobbin | 290mm /straight bobbin |
| Package weight | 2-5kg | 2-5kg |
| Yarn winding speed | ≤150m/min | ≤150m/min |
| Yarn shaping control | Servo system drive | |
| Yarn shaping mode | soft/hard yarn package | |
| Twist direction | s/z | |
| Over-feeding type | Press wheel type/Double over-feeding | |
| Heat-setting box | 2KW Phosphorus benzene hot box per section | |
| Oiling method | Auto oiling per spindle | |
| Spindle driven method | Long belt | |
| Tension control | Steel ball, flyer | |
| Power configuration | 2pcs of 11kw/15kw motor, 2pcs of 1.5kw and one piece of 3kw motors | |
| Input power and capacity | three phase 380V/50Hz/80A | |
| Operataion control | Touch Screen | |
| Dimension | headstock length: 2.2m，height:1.95m，width: 0.88m. | |
| machine body : 2.17m×10 /sections，width:1m，height: 1.8m. | ||
| tailstock length : 1.2m，height:1.8m，width: 0.88m. | ||
| optional device | friction wheel On/Off per spindle | |
