DX321G-(Short Fiber Spun Twisting Machine With 225mm Spindle Gauge) adopts servo system, inverter, PLC, touch screen and microcomputer control synchronous system.

product description

Suits to short fiber and spandex blended TFO twisting, achieved 1.1/1.25/1.7/2.1kg cone same weight feed-in and same weight winding-up cone after twisting. Besides that, DX268G can also produce high quality soft cones directly to cone dyeing.
Energy saving design, adopts two main motors to drive, which not only solved belt uneven tension problem, also declined energy consumption.
It adopts servo system, compared to traditional gearbox system, servo system has simple structure, no pollution, less noise, easy maintenance, various shaping technology, and better yarn shaping and machine running stabilization.
All the high quality parts composed the excellent yarn path, minimized yarn damage during its processing and much better suitable for high quality yarn production request.
DX321G(Short Fiber Spun Twisting Machine With 225mm Spindle Gauge) also had modified specially for short fiber sewing thread twisting, it provides low energy consumption and less manpower requirement.

Twisting machines for staple fibre yarns

Two-for-One twisting is the most profitable way of twisting yarn
DONGXING TFO (Two-for-One) twisting machines have achieved a dominant market share in this sector thanks to their technological and efficiency advantages - as underlined by sales amounting to more than 2.5 million spindles.

In close cooperation with our customers, DONGXING have developed machines which are able to meet the changing requirements of the market while offering the user exceptional cost efficiency, flexibility and outstanding product quality. By applying the company’s many years of experience in an ongoing research and development program, one which is constantly being modified to incorporate the newest methods and techniques, we shall strive to maintain DONGXING’ s leadership and manufacturing excellence.

Two-for-One Twisting Machine
The DONGXING helps customers save up to 40% in energy costs even for very fine yarn counts. Optimal yarn and package evenness are achieved thanks to a newly designed take-up geometry.

Process handling has a new efficiency dimension:

central setting possibilities
recipe administration
quality monitoring
length measuring and further parameters
really easy operating and absolute safety are integrated

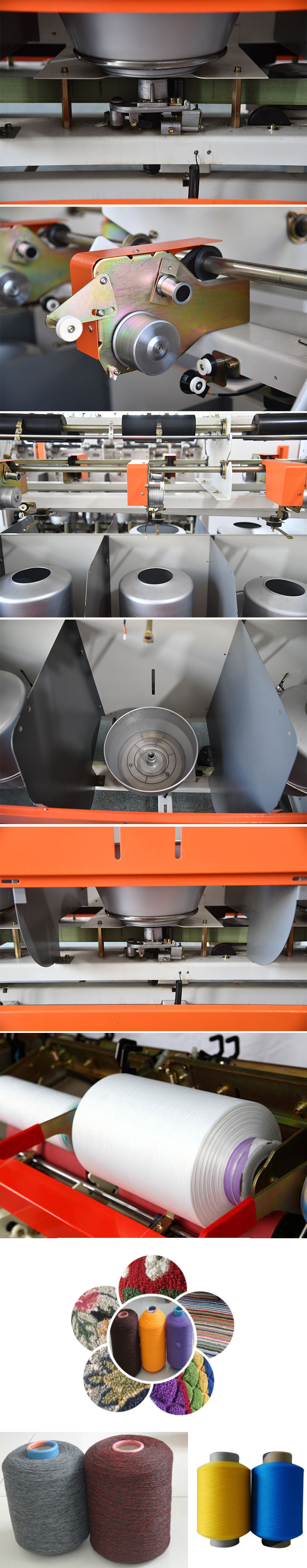

Yarn guiding elements
All elements guiding the yarn at the twisting process are very gentle to the yarn, due to the special wear resistant surface.

Two-for-One Twisting Machine Specifications

DX321G-225
Spindle gauge225mm
Spindles  per section 18
Standard sections per set10
Standard spindles per set180
Spindle type133/146/156/166
Yarn pot type133/ 146/156/166
Threading operation pneumatic    /  /manual
Processing materialshort fiber
short fiber with spandex
Spindle running speed3000-12000rpm
Twists per meter range200-1500TPM
Feed-in yarn bobbin170/230mm  /Straight bobbin
Feed-in yarn package weight1.1/1.25/1.7/2.1kg
Finished bobbin170mm-230mm/0°,3°30,4°20,5°57
Package weight2.1kg
Yarn winding speed≤50m/min
Yarn shaping controlServo system control
Lift-up devicepneumatic left
Driving methodLong belt
Twist directions/z
Tension controlsteel ball, flyer
Power configuration  2* 11kw/15kw motors
 Input of power and capacityThree phase 380V/50Hz/65A
Operataion controlTouch Screen
Dimensionheadstock+tailstock: 3m,
machine body: 2.04m*12 sections,
width: 0.73m, height: 1.5m.
