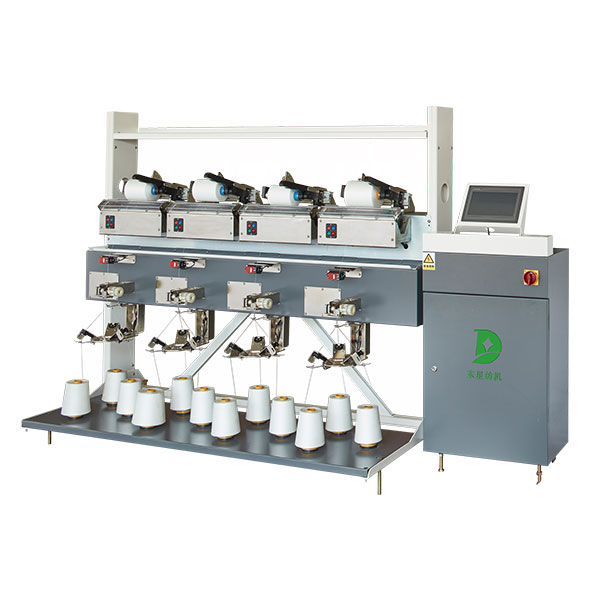

Double winder
Product categories:Double winderSuitable range
Merge two or three strands of cotton, canapina fibre, fur, chemical fibre or their blends into one yarn, prepare bobbins for following equipment of two-for-one twister.
product description
Features
→ Single spindle control by single motor, speed control by frequency conversion, easier for winding speed and technique parameter adjustment
→ Use inspection device for yarn broken to avoid any strands absent
→ Applying alarm reset button, easy for finding yarn-broken spindle
→ Adopt sections assembling mode, it can shorten erection time at site
→ Control panel: operation ease, simple for winding speed setting and yarn length detecting
→ Penumatic lifting device: Package immediately after yarn broken, and easy for piecing
→ Tension device: easy to adjust yarn tension by changing tension slices
| Mode of machine | double sides, single layer |
| No. of spindles | The multiple of ten (100 spindles, ordinary mode) |
| spindle gauge | 340mm/410mm |
| Anti-overlap mode | electronic formula |
| Driving mode | Single spindle control by single motor |
| Form of winding | grooved drum |
| Merge strands | 2-3 strands |
| Input power and capacity | 380V/50Hz/30A |
| Tension control | self-weight platen mode |
| Auto-stopper as yarn broken | electronic broken testing device, pneumatic lifting device |
| power of each spindle | 90W Brushless DC energy saving motor |

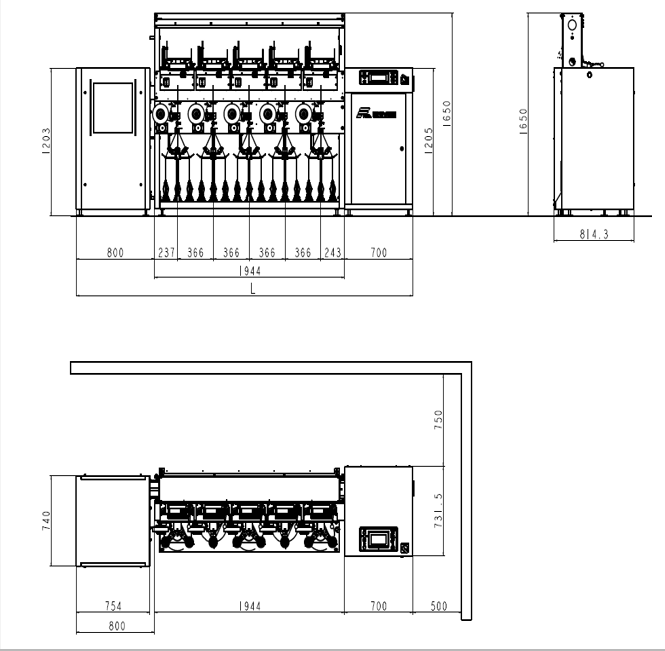

| Overall size | Head-stock 400mm* 710mm* 1300mm 2060mm * 1450mm *1900mm. (per section) |
| Optional | Preset yarn length device, air splice device, over head blower, cutter |
