Chenille Machine
Product categories:Chenille MachineThe machine uses:

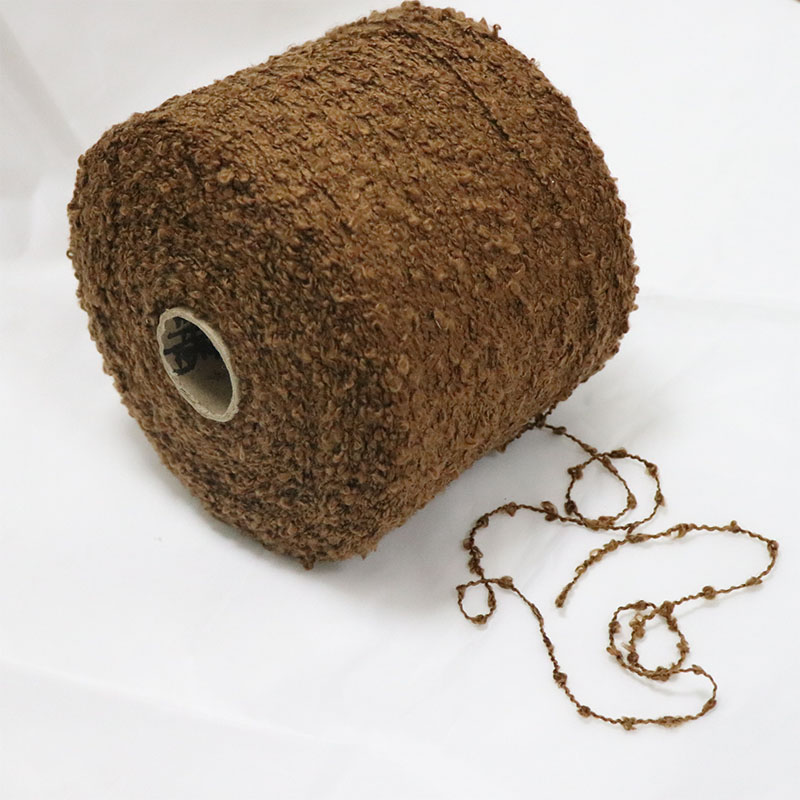

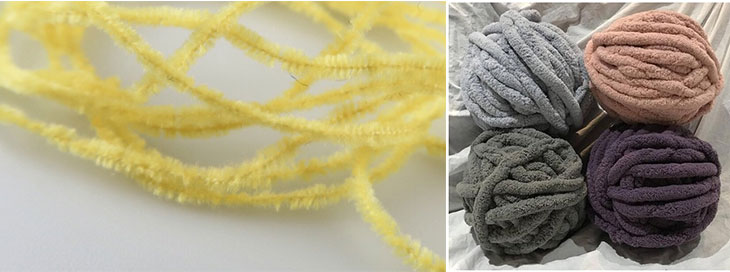

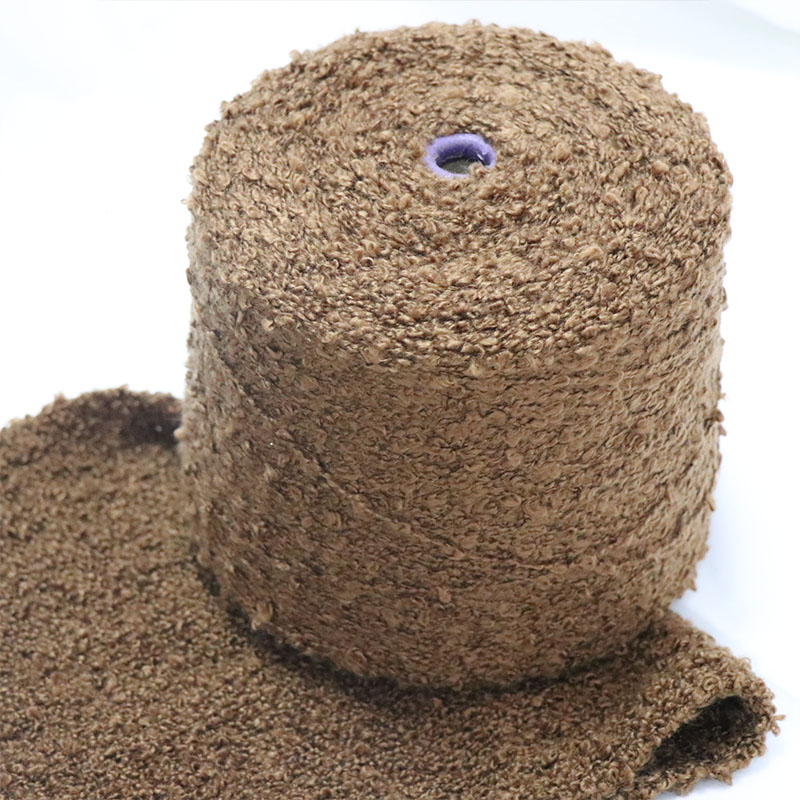

The machine through the rotating head can be wool, cotton, acrylic, nylon,polyester and other types of 2-3 yarn cutting into short-term and put them into thetwo strand core wire, a plump chenille yarn through the spindle twisting.
product description
| DX258X-200 Chenille machine main specifications | ||
| Spindle guage | 200mm | |
| Spindle NO. | 10 spindles per section, max. up to 100 spindles | |
| control of spindle | two spindles one motor control | |
| power selection of spindle motor | 380V/370W | 380V/550W |
| Spindle running speed | 3000-7000rpm | |
| Up-down range | 240mm adjustable | |
| Up-down speed | adjustable by inverter and PLC | |
| Cutted yarn pieces rotating speed | 7000-24000rpm | |
| Yarn speed | 5-15m/min | |
| Suitable yarn count range | 0.4-15S | |
| Roller diameter | 29.5mm | |
| Ring inner diameter | 90mm | |
| Twist direction | S | |
| Driving method | two spindles one belt | |
| Input power and capacity | 380V/50Hz/35KW | |
| Dimension | Headstock+tailstock: 880mm, Width:700mm, Height:1400mm. | |
| Machien body length per section: 2010mm, Body width：1200mm, (including yarn creel) /Body height：2500mm. | ||
Machine Features：
1.DX258X is suitable to process all the regular yarn and special yarn kinds.
2.Touch screen showing all the data, and all production data input touch screen.
3.High utilization efficiency, short processing cycle of threading production, low malfunction rate and convenient maintenance.
4.DX258X adoptes integrated servo system, inverter, PLC, and touch screen. Operates easily and produced Chenille yarn quality more stable.
